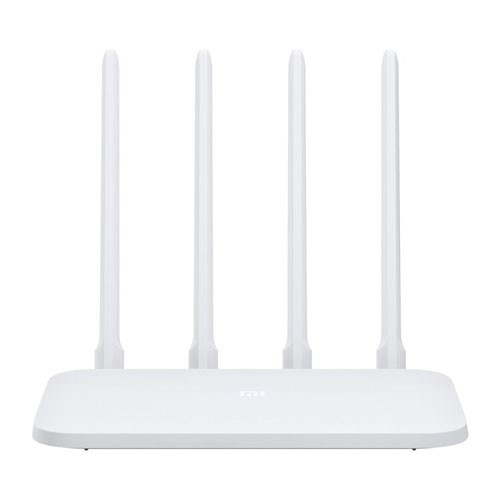

Mi Router 4C has 4 omnidirectional antennas. for a faster and smarter experience. External antennas for better signal strength. 64 MB memory for stable operation. Smart management via the app.
Smart unauthorized access prevention
Most of the time people access one's internet without your authorization due to the fact that passwords are simple or network sharing software being installed. The Mi Router 4C IS ABLE TO ALERT one when a new device does connect to the network. if a suspicious device tries to join the network depending on the security level it will be blocked from connecting. or one asked to add the device to the blacklisted group.
Wi-fi optimization
To give the network speed a boost, open the Mi WiFi app, go to the toolbox, and simply click "Wi-Fi Optimization" to automatically monitor and optimize the Wi-Fi channel in multiple dimensions.
Remote management
Your home network is in the palm of your hand. You can manage your home network at any time using the Mi WiFi app, enabling you to check the status of your home network even when you're out
simple design
The body of the Mi Router 4C has an understated geometric design with a non-coated matte white plastic shell. The simple appearance has a natural quality that enables it to blend into any room of the home
4 external antennas
The 4 external omnidirectional external antennas with a signal gain of 5dBi can effectively enhance the signal gain effect to improve transmission performance,
and can be used easily in various complex real-world environments
Large 64MB memory
With up to 64MB of memory, data transmission is more stable,ensuring the smooth operation of a larger number of functions, and the stable connectivity of more smart devices.
Intelligent speed
You can choose a router configuration according to the app market or allow the Mi Router 4C to carry out intelligent optimization so that you have a smoother experience playing games, watching videos or browsing the web. For a better online experience, you can also prioritize network bandwidth for a single device.
|
Xiaomi Router 4C |
||
|
Hardware Configuration |
|
|
|
|
Processor |
MT7628DA |
|
|
Internal memory |
64MB DDR2 |
|
|
2.4Ghz |
Integrated LNA and PA |
|
|
5GHz |
Not supported |
|
|
Heat dissipation |
Natural heat dissipation |
|
|
Operating humidity: |
10%–90% RH (no condensation) |
|
|
Storage humidity |
5%–90% RH (no condensation) |
|
|
Protocol standards
|
IEEE 802.11b/g/n IEEE 802.3/3u |
|
|
ROM |
16MB NorFlash |
|
|
2.4GHz Wi-Fi |
2x2 (supports IEEE 802.11N protocol, maximum possible speed of 300Mbps) |
|
|
5GHz Wi-Fi |
Not supported |
|
|
Antennas |
4x external single band antennas
|
|
|
Operating temperature: |
0–40°C |
|
|
Storage temperature: |
-40–70°C |
|
|
|
|
|
Wireless specifications |
|
|
|
|
Singal band |
2.4GHz
|
|
|
Modulation
|
11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps) 11g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps) 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15 |
|
|
Reception sensitivity
|
11Mbps: ≤ -85dBm, 54Mbps: ≤ -72dBm, HT20 MCS7: ≤ -69dBm, HT40 MCS7: ≤ -66dBm |
|
|
|
|
|
Software specifications
|
|
|
|
|
Operating system
|
Mi WiFi ROM intelligent router operating system based on a highly customized version of OpenWRT that supports web, Android, and iOS router management software |
|
|
Wireless security
|
WPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding |
|
|
Management application |
Supports web, iOS, and Android |
